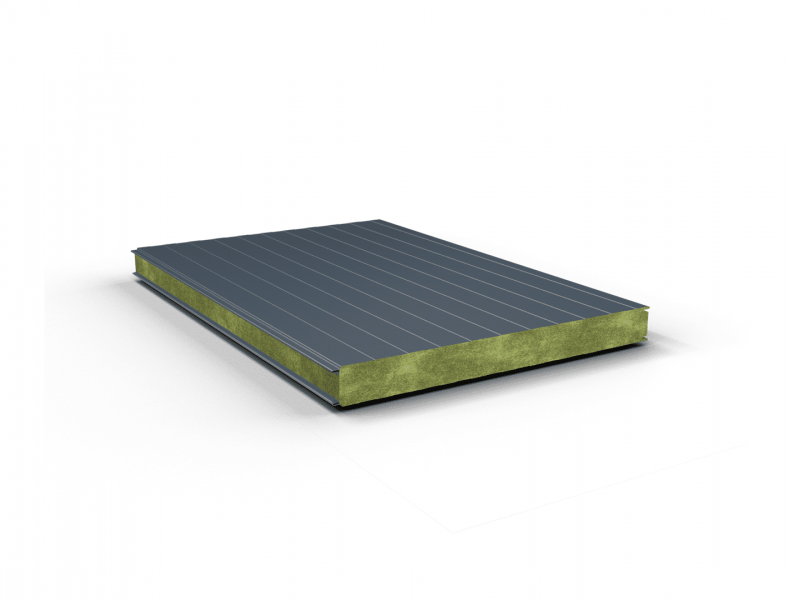

Sandwich panel GS MW QA S
NEW Wall panel with a mineral wool core

GS MW S wall panels with visible fastening are intended for the construction of external and internal walls on a building frame.The panel is characterized by a better heat transfer coefficient with a lower core density. Steel sheet galvanized on both sides according to EN 10346 and coated with an organic polyester coating with a coat thickness of 25 μm is used as facing. The panels can be installed both in a vertical and horizontal arrangement. They ensure maximum fire protection and excellent sound reduction



GO TO CONTACT
Sandwich panel GS MW QA S <b> NEW Wall panel with a mineral wool core </b>
Sandwich panel GS MW QA S
  • The profiling of the metal cladding makes the walls look aesthetically pleasing
  • A large radius of the lock profile ensuring the integrity of protective paint coatings
  • A double lock connecting the panels guaranteeing high fire-tightness properties
  • The core of mineral wool with a very good resistance to fire and sound insulation
1
Type of core​​
Hard mineral wool
2
Declared heat transfer coefficient λD [W/m*K]
0,040
3
Thickness [mm]
80
4
Weight [kg/ m.l.] for a 0.5 / 0.6 mm cladding (module 1000 mm)*
17,9
5
Weight [kg/m. l.] for a 0.5 / 0.6 mm cladding (module 1140 mm)*
20,3
6
U coefficient Ud,S [W/m2K] mineral wool core
0,49
7
Modular width [mm]
1000 / 1140
8
External profiling 1000
L - Linear, M - Microfiltered, F - Wavy, R - Grooved
9
External profiling 1140
L - Linear, M - Microfiltered, F - Wavy
10
Interior lining profiling
L - Linear
11
Reaction to fire (for all end uses)
A2-s1,d0
12
Fire spread
Non Fire Spreading
13
Fire resistance classification***
NPD
14
Water vapor permeability
„Complies” (impervious)
15
Sound insulation
31(-1;-3)
16
Standard exterior lining colors for 1000 mm modular widths **
RAL 9002 RAL 9006 RAL 9007 RAL 9010
17
Standard exterior lining colors for 1140 mm modular widths **
RAL 7016 RAL 9002 RAL 9006 RAL 9007 RAL 9010
18
Standard interior lining colors **
RAL 9002 RAL 9010
19
Certificates, approvals, seals of approval
EN 14509:2013

* A table with panel weights and the other corresponding facing thickness values are available in the Technical Department
** Available colors depend on lining thickness
***Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance
