GS insPIRe® S MAX
NEW! Polyisocyanurate wall panel

GS insPIRe®  S MAX wall panels are designed for external curtain walls and internal partition walls in skeletal structures. The panels can be installed both vertically and horizontally as single and multi-span wall elements. The plate cladding is galvanized steel sheet on both sides according to EN 10346 with organic polyester varnish with a coating thickness of 25 μm. The tightness of panel joints is ensured by the PUS polyurethane gasket applied at the production stage.

Annotation:
Panels with a tongue-and-groove lock in thicknesses: 100 and 120 mm, panels in thicknesses of 40, 60, 80 mm with a flat lock.

GO TO CONTACT
GS insPIRe® S MAX <b>NEW! Polyisocyanurate wall panel</b>
GS insPIRe® S MAX <b>NEW! Polyisocyanurate wall panel</b>
GS insPIRe® S MAX <b>NEW! Polyisocyanurate wall panel</b>

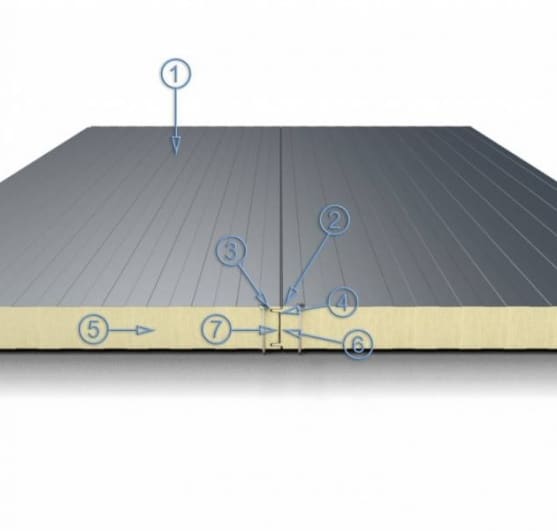

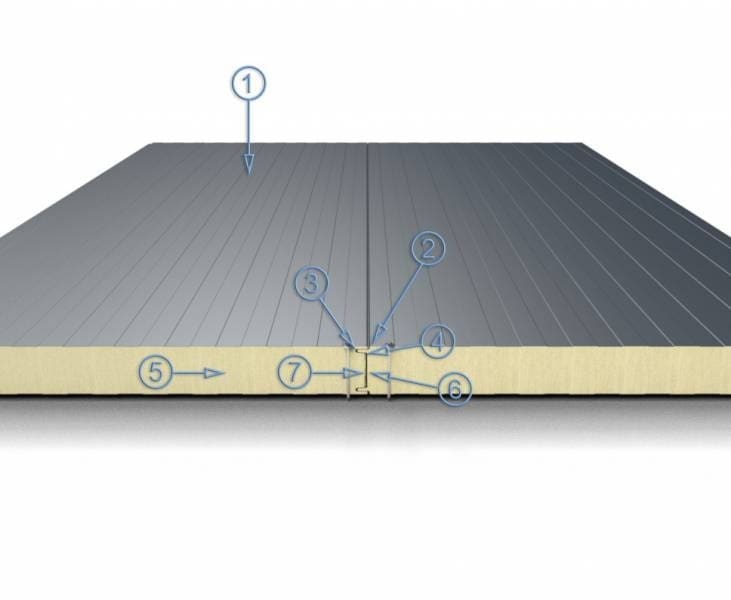

GS insPIRe® S MAX
  • The profiling of the metal cladding makes the walls look aesthetically pleasing
  • A large radius of profiling of the lock ensuring the integrity of the protective coatings
  • Double lock connecting the panels guaranteeing high fire integrity properties
  • Contoured edges facilitate assembly and increase thermal insulation
  • Core made of rigid PIR foam with very good thermal insulation and fire properties
  • Continuous polyurethane gasket maintaining high thermal insulation. It was applied during the   production process
  • Aluminum foil prevents water vapor from entering the polyurethane foam core



1
Type of core​​
Modified PIR
2
Declared heat transfer coefficient λD [W/m*K]
0,019
3
Thickness [mm]
40 60 80 100 120
4
Mass* [kg/m2]
10,0 11,0 11,8 12,6 13,4
5
Maximum length [m]
16,5
6
Total width [mm]
1020 / 1160 ( for thickness ≥ 60 mm and profilation L, M and F)
7
Modular width [mm]
1000 / 1140 ( for thickness. ≥ 60 mm and profilation L, M and F)
8
Exterior lining profiling for 1000 mm modular widths **
L - Linear, M - Microfiltered, F - Wavy, R - Grooved, P - Flat
9
Exterior lining profiling for 1140 mm modular widths **
L - Linear, M - Microfiltered, F - Wavy, P - Flat
10
Interior lining profiling
L - Linear, P - Flat
11
Standard exterior lining colors for 1000 mm modular widths **
RAL 7016 RAL 7035 RAL 9002 RAL 9006 RAL 9007 RAL 9010
12
Standard exterior lining colors for 1140 mm modular widths **
RAL 7016 RAL 7035 RAL 9002 RAL 9006 RAL 9007 RAL 9010
13
Standard interior lining colors **
RAL 9002 RAL 9010
14
Ratio Ud,S [W/m2K] for PIR MAX
0,52 0,33 0,24 0,19 0,16
15
Fire resistance classification for MAX panels ***
- - - - EI 30
16
Reaction to fire
B-s1, d0
17
Fire spread
Non Fire Spreading
18
Certificates, approvals, seals of approval

DWU CE according to EN 14509,
Certificate of Business Continuity EN 14509,
Fire resistance classification

* Weight per 1 m b. for lining 0.5 / 0.5 mm (width for 1140). Detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

File Download
DoP(EN), GS insPIRe S MAX, nr. 2022_03.pdf Download
