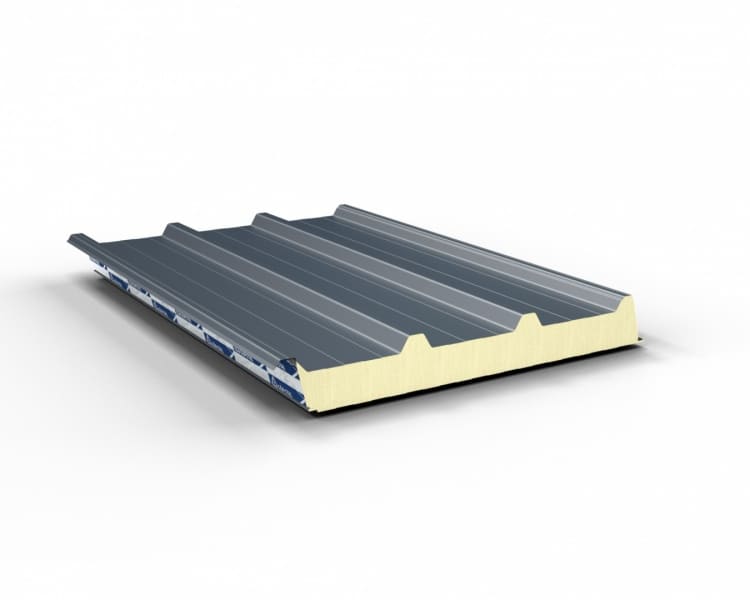

GS insPIRe® D MAX
Polyisocyanurate roof panel
GS insPIRe^® D MAX roof panels are designed for roofing. They are characterized by a very deep profiling of the trapezoidal outer cladding. This is related to the transmission of long-term service loads. The boards are fastened with screws to the wooden, steel or reinforced concrete structure. The minimum roof pitch is 3 ° (5.2%) without skylights and 5 ° (8.7%) for covering panels joined along their length. The plate cladding is galvanized steel sheet on both sides according to EN 10346 with organic polyester varnish with a coating thickness of 25 μm. The modular width of the panel is 1000 mm, and its standard lengths range from 2.0 m to 12.0 m. On special customer request, we supply panels shorter than 2.0 m and longer than 12.0 m, with a maximum length of 16.5 m. The tightness of panel joints is ensured by the PUS polyurethane gasket applied at the production stage.

GO TO CONTACT

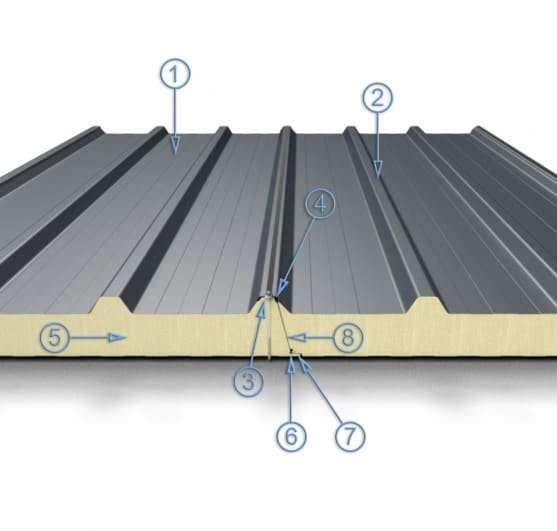

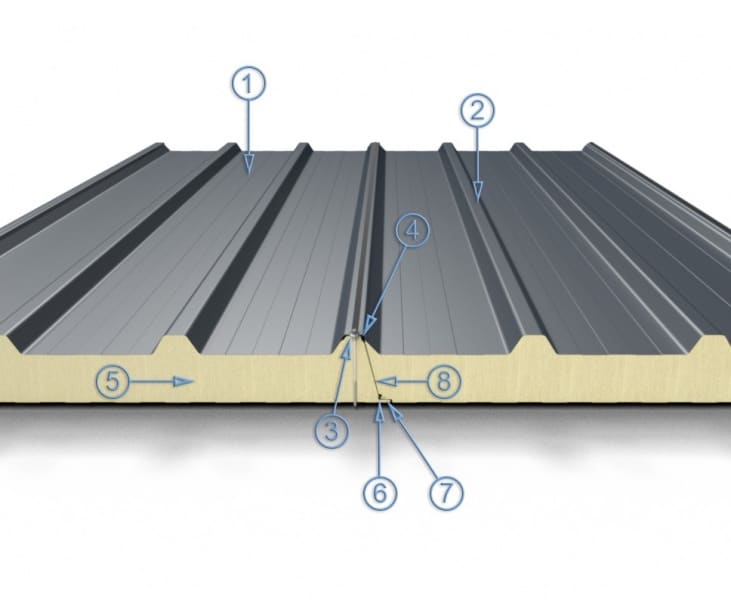

The profiling of the metal cladding makes the walls look aesthetically pleasing
A large radius of cladding profiling ensuring the integrity of the protective coatings
Continuous polyurethane gasket applied during the production process
Protection chamber against water capillary action
Core made of rigid PIR foam with very good thermal insulation and fire properties

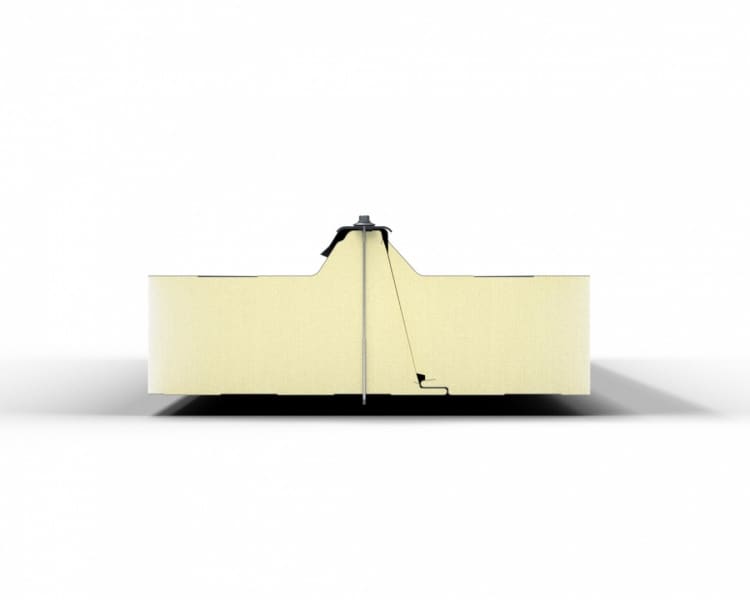

Contoured edges facilitate assembly and increase thermal insulation
Continuous polyurethane gasket maintaining high thermal insulation. It was applied during the production process
Aluminum foil prevents the penetration of water vapor into the core of polyisocyanurate foam
