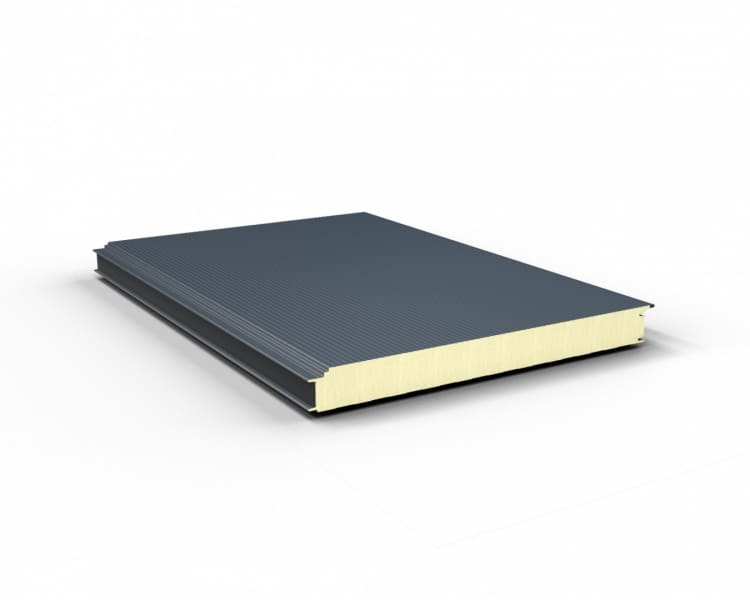

GS insPIRe® U
Polyisocyanurate wall panel

GS insPIRe®  U wall panels are designed for external curtain walls and internal partition walls in skeletal structures. The panels can be installed both vertically and horizontally as single and multi-span wall elements. Hidden fastening, invisible from the facade, makes these panels very attractive in terms of architecture and functionality. The plate cladding is galvanized steel sheet on both sides according to EN 10346 with organic polyester varnish with a coating thickness of 25 μm. The tightness of panel joints is ensured by the PUS polyurethane gasket applied at the production stage.

GO TO CONTACT

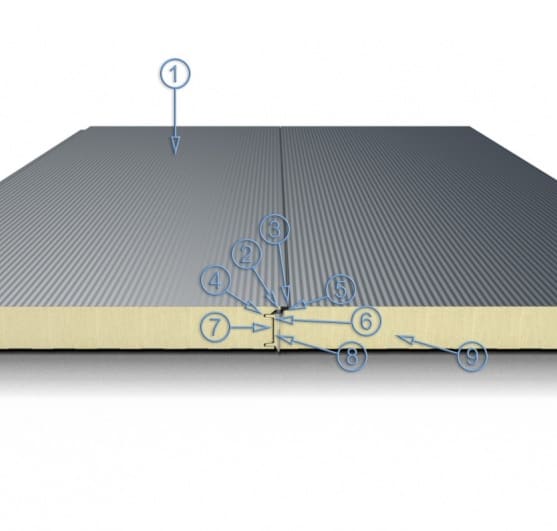

  • The profiling of the metal cladding makes the walls look aesthetically pleasing
  • Hidden fastening connector giving the façades a more uniform appearance
  •  A large radius of profiling of the lock ensuring the integrity of the protective coatings

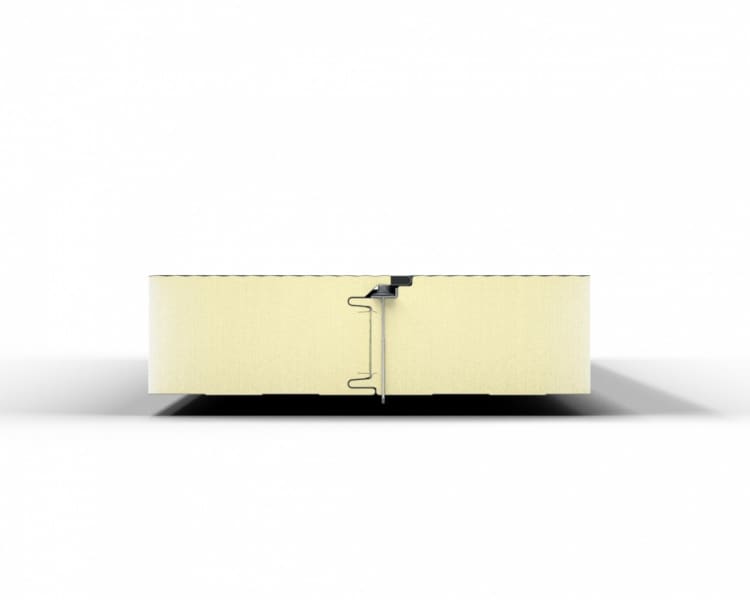

  • Double lock connecting the panels guaranteeing high fire integrity properties
  • Auxiliary groove for easy positioning of the fastening connector
  • Contoured edges facilitate assembly and increase thermal insulation
  • Continuous polyurethane gasket maintaining high thermal insulation. It was applied during the production process
  • Aluminum foil prevents water vapor from entering the polyurethane foam core
  • Core made of rigid PIR foam with very good thermal insulation and fire properties
1
Type of core​​
Rigid polyisocyanurate foam (PIR)
2
Declared heat transfer coefficient λD [W/m*K]
0,022
3
Thickness [mm]
60 80 100 120 140
4
Mass* [kg/m2]
11,3 12,1 12,9 13,7 14,5
5
Maximum length [m]
16,5
6
Total width [mm]
1050
7
Modular width [mm]
1000
8
Exterior lining profiling for 1000 mm modular widths **
L - Linear, M - Microfiltered, F - Wavy, R - Grooved, P - Flat
9
Interior lining profiling
L - Linear, P - Flat
10
Standard exterior lining colors **
RAL 3000 RAL 5010 RAL 6011 RAL 7016 RAL 7035 RAL 8017 RAL 9002 RAL 9006 RAL 9007 RAL 9010
11
Standard interior lining colors **
RAL 9002 RAL 9010
12
Ratio Ud,S [W/m2K] for PIR
0,44 0,29 0,23 0,19 0,16
13
Fire resistance classification ***
- - EI 15 EI 30 EI 30
14
Reaction to fire
B-s1, d0
15
Fire spread
Non Fire Spreading
16
Certificates, approvals, seals of approval

DWU CE according to EN 14509,
Hygienic Certificate,
Certificate of Business Continuity EN 14509,
Fire resistance classification

* Weight per 1 m b. for lining 0.5 / 0.5 mm. detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions according to fire resistance classification

File Download
DoP(EN), GS insPIRe U, nr. 2022_03.pdf Download
